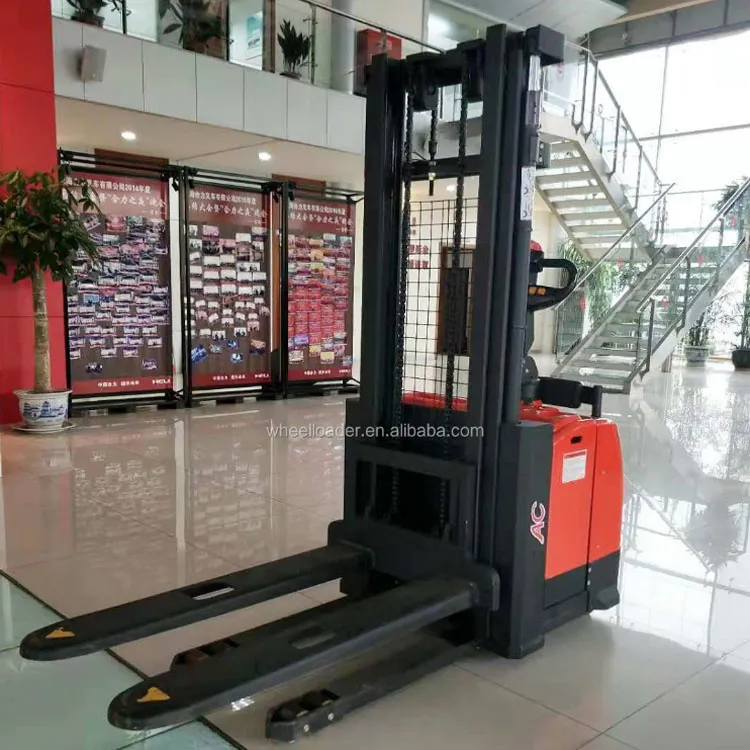

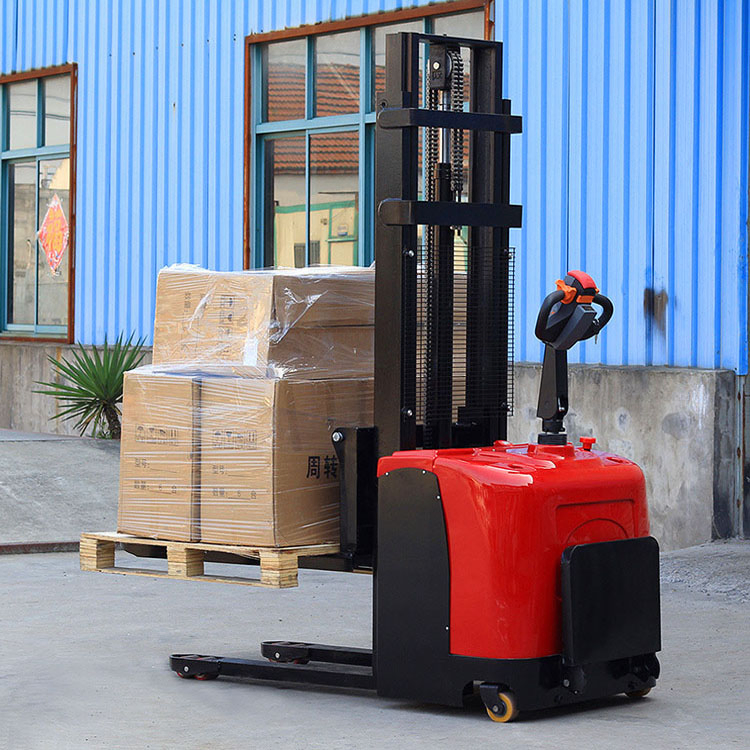

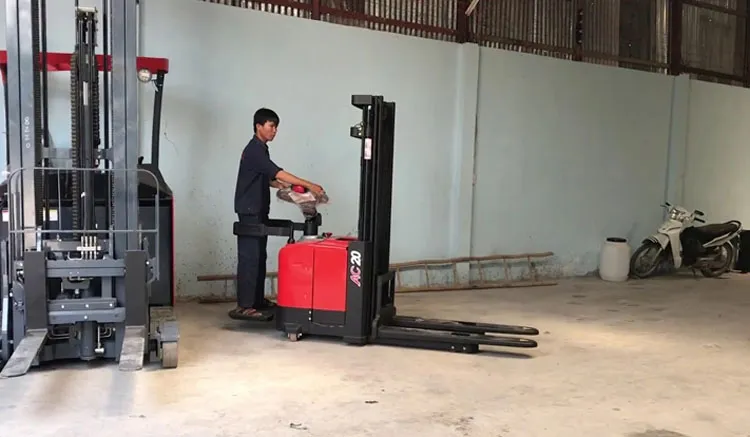

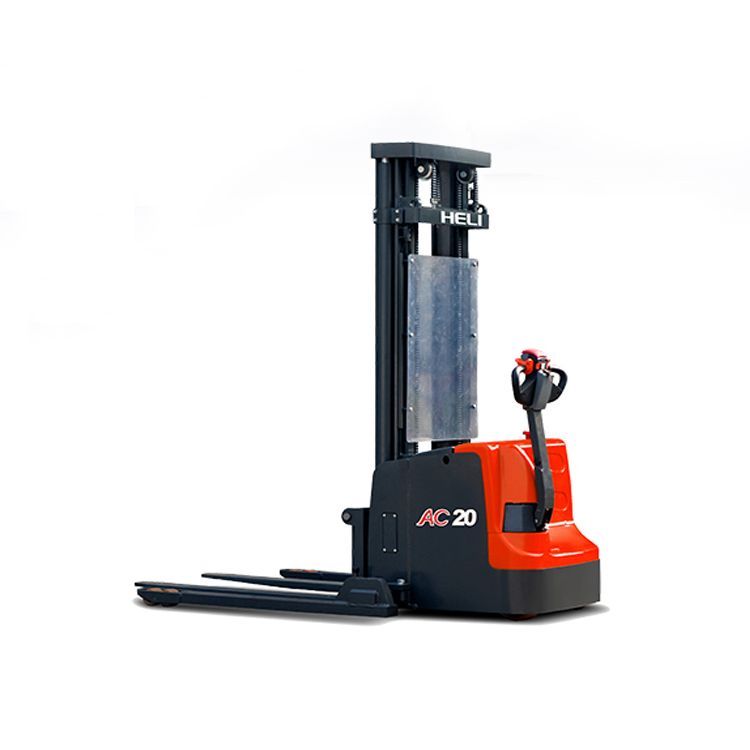

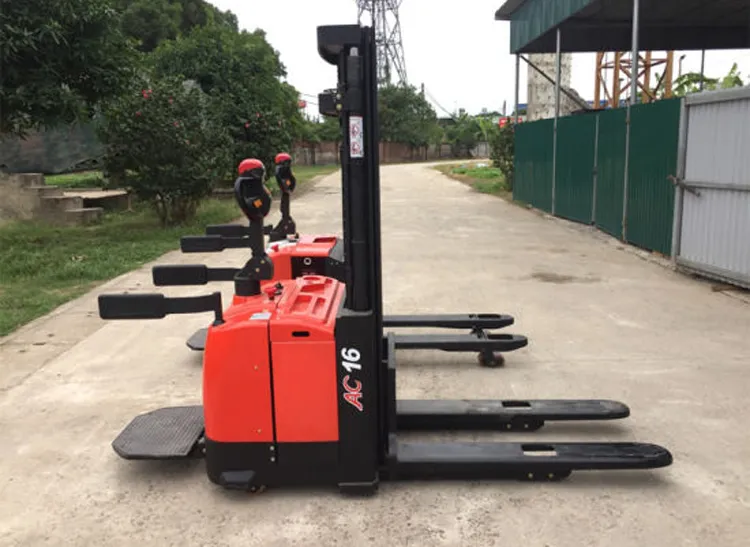

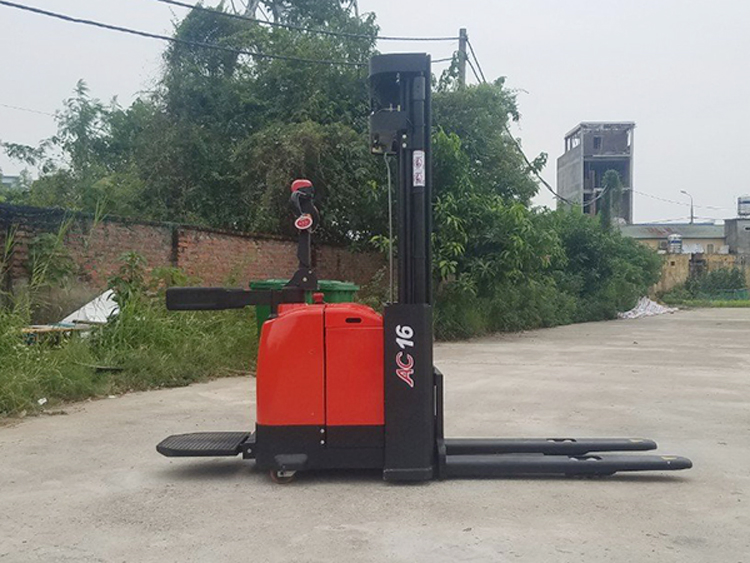

Heli 1.6 Ton with 3m Lifting Height Electric Stacker (CDD16)
Product DescriptionProduct Features:Configuration and Performance:AC Driving System, No carbon brush and free maintenanceTwo-way magnetic valve, three drop speed modeElectronic power steering system, light and lower noiseDriving unit floating bodies with patent designUSA curtis driving controllerEl......
Send Inquiry
Product Description
Product Features:
Configuration and Performance:
- AC Driving System, No carbon brush and free maintenance
- Two-way magnetic valve, three drop speed mode
- Electronic power steering system, light and lower noise
- Driving unit floating bodies with patent design
- USA curtis driving controller
- Electromagnetic, regenerative brake sysstem
- Automatic lifting limit, proximity switch, long life
Safety:
- Curve automatic decelebration devices, more safe
- Good high position, vehcle automatic deceleration
- Stepless speed control system, safe and quiet
- Controller with multiple automatic protection
- Emergency reversing device/Emergency brake switch
- High position automatic reduction device
Specification:
| Model | CDD16 | CDD20 | |||
| Configuration No. | 350 | D930 | |||
| Load capacity | kg | 1600 | 2000 | ||
| Load center | mm | 600 | 600 | ||
| Operator type | Pedestrian-controlled type/Rider-control type | Pedestrian-controlled type/Rider-control type | |||
| Wheelbase(not lifting) | mm | 1375 | 1325 | ||
| Goods fork minimum height | mm | 5300/5500/5800 | 1400/2000 | ||
| Maximum lifting | mm | 550/600/650/685 | 550/600/650/685 | ||
| Max.travelling distance | mm | 85 | 86 | ||
| Overall fork width | mm | 1150(1220)*185*55 | 1150(1220)*185*55 | ||
| Inside width between forks | mm | 2105/2525 | 2050/2470 | ||
| Fork size | mm | 856 | 856 | ||
| Overall length | mm | 1900/2500/3000/3500/3800/4100/4500 | 1900/2500/3000/3500/3800/4100/4500 | ||
| Overall width | mm | 1185/1535/1765/1980/2135/2335/2500 | 1185/1535/1765/1980/2135/2335/2500 | ||
| Overall height | mm | 30 | 30 | ||
| Min.Turningradius(pedal retracted/unfolded) | mm | 1580/1990 | 1580/1990 | ||
| Min.Aisle width for pallets 800*1200 | mm | 2180/2580 | 2180/2580 | ||
| Travel speed | km/h | 2260/2650 | 2210/2600 | ||
| Lift speed | mm/s | 5/5 | 5/5 | ||
| Gradeability | % | 130/230 | 130/230 | ||
| Battery voltage/capacity (5 hours to put battery) | V/Ah | 5/7 | 5/7 | ||
| Battey weight | kg | 24/280 | 24/280 | ||
| The total battery (reservation) | kg | 235 | 235 | ||
| Service weight with battery | kg | 1610 | 124 | ||
