Product Description

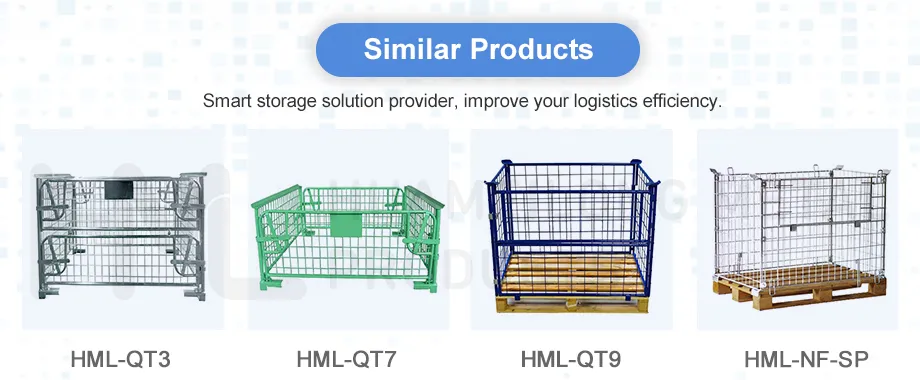

Other kinds of wire mesh pallet cage for your choice

Specification of metal wire mesh pallet cage

Same design, different sizes
Same design, different sizes
Model No.	Exterior Dimension	Interior High	Wire Guage	Grid Size	Loading Capacity	Loaded in 1x40'GP
Model No.	Exterior Dimension	Interior High	Wire Guage	Grid Size	Loading Capacity	Loaded in 1x40'GP
	LxWxH(mm)	mm	mm	mm	kg	sets
NF-1	1200x800x1000	850	¢5-¢12	60x103	800	480
NF-2	1000x1200x1450	1300	¢5-¢10	60x105	1000	280
NF-3	1200x1000x1200	1200	¢5-¢10	60x105	800	460
NF-4	1200x1000x1000	1000	¢5-¢10	60x105	800	480
NF-5	1200x800x1000	1000	¢5-¢10	60x105	800	480
Material	Mild steel Q235
Application area	Warehouse, logistic, mass retail, recycling industry, etc.
Finish	Zinc/hot dip galvanized/powder coating
Remark	Costomized or OEM support
Main Features	1.Collapsible-save space when not in use,ideal for return journeys 2.Bright electro zinc plated finish 3.Standard half-hinged gate access 4.Long lasting,economical alternative to disposable packing 5.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness. 6.Four-way entry for easy use with lift trucks

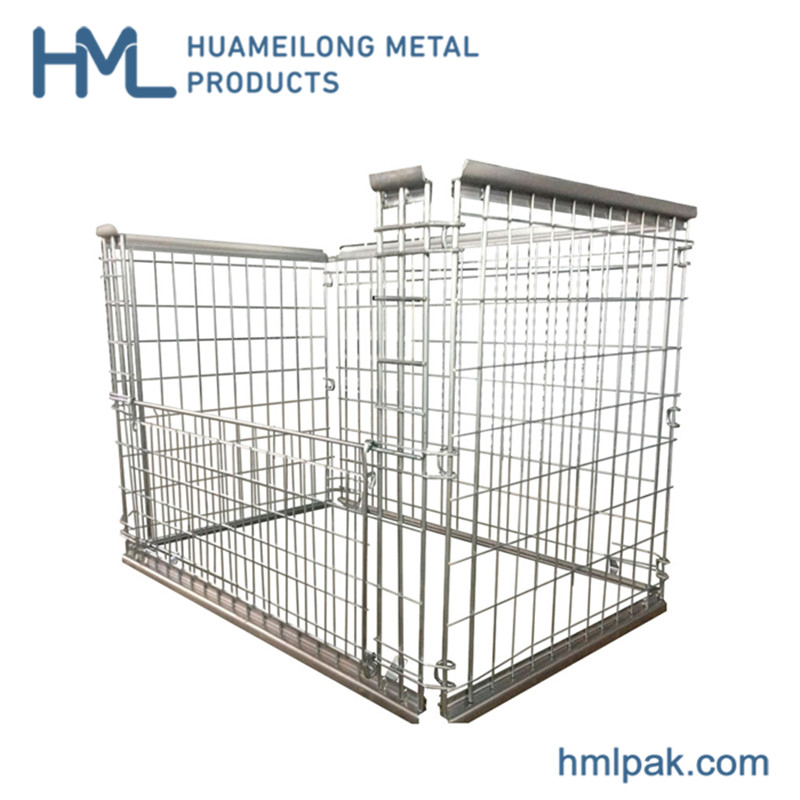

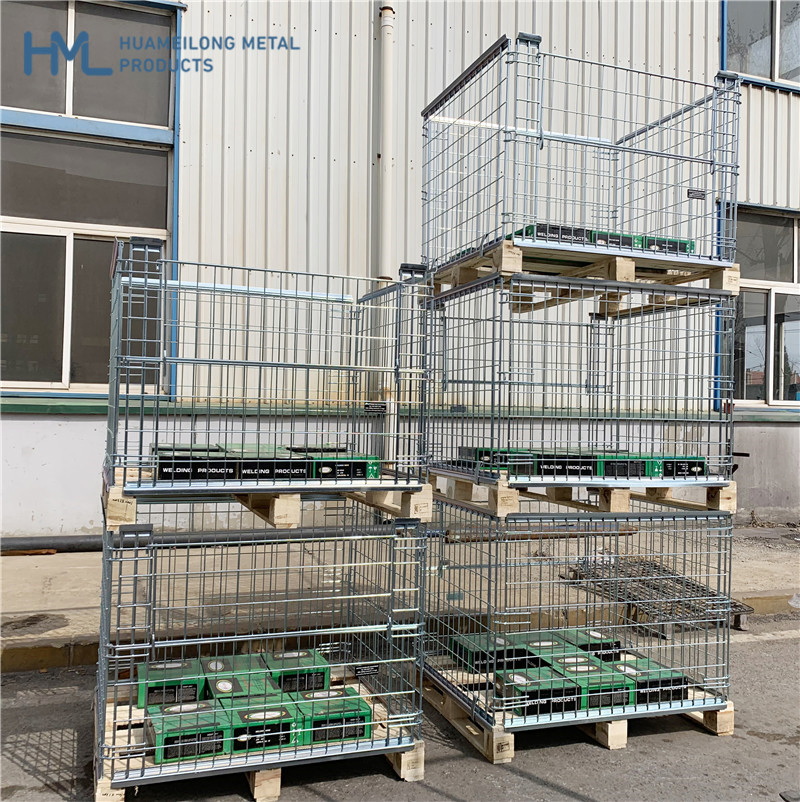

Returnable welding logistics equipment portable metal wire mesh pallet cage

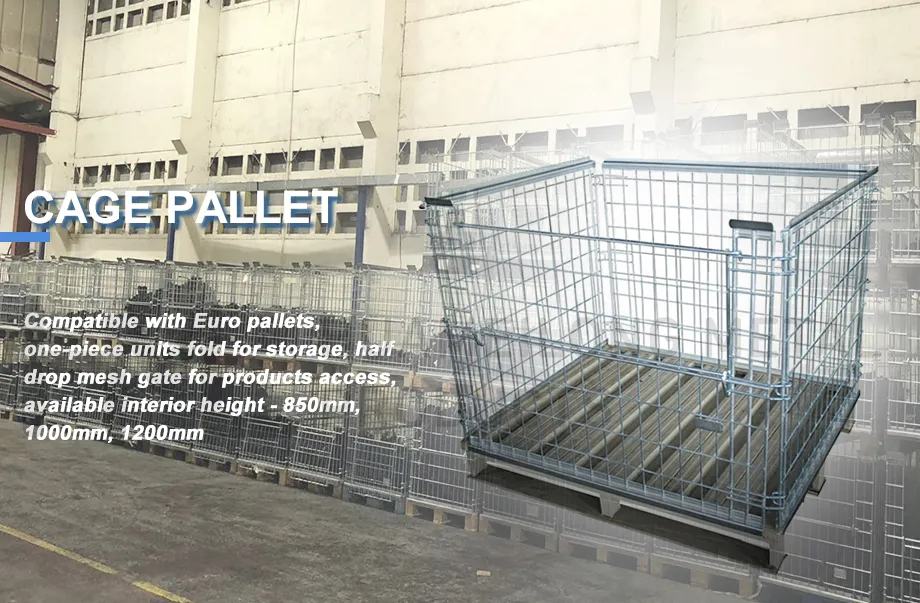

Compatible with Euro pallets, one-piece units fold for storage, half drop mesh gate for products access,
available interior height - 850mm, 1000mm, 1200mm, etc

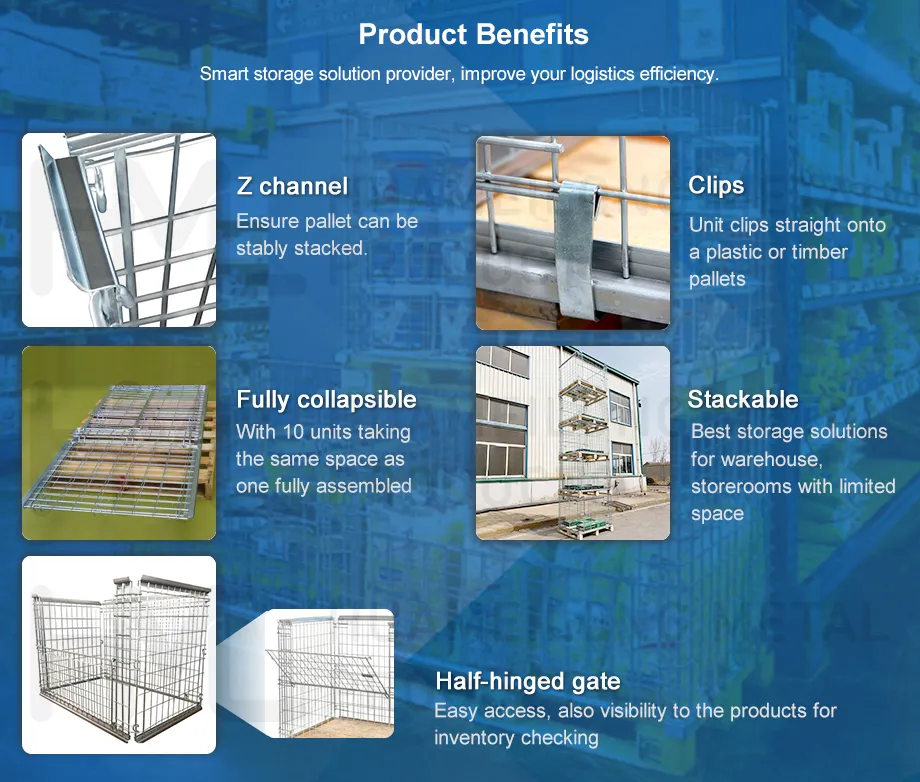

Benefits & Designs of wire pallet cage with wheels

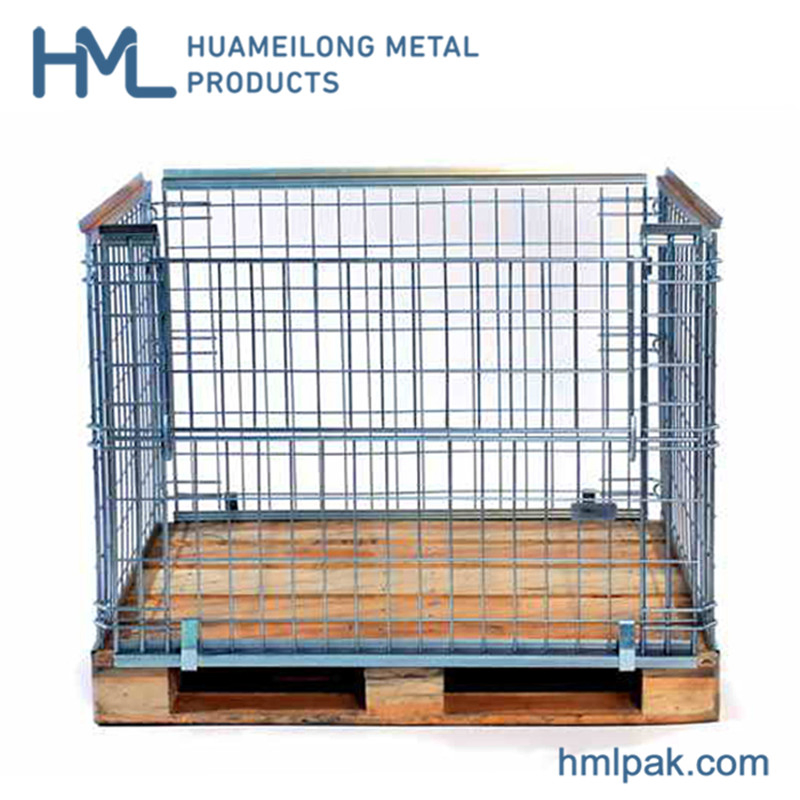

Returnable Welding Logistics Equipment Portable Metal Wire Mesh Pallet Cage

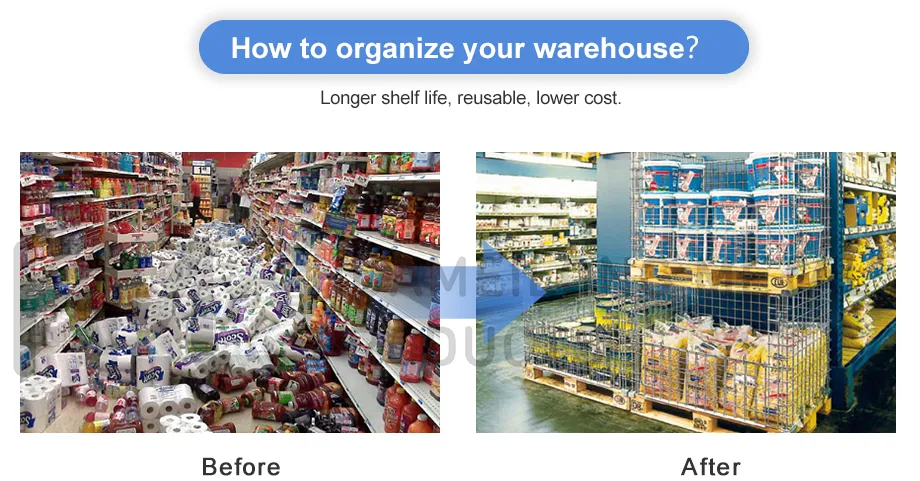

Application of logistics equipment pallet cage

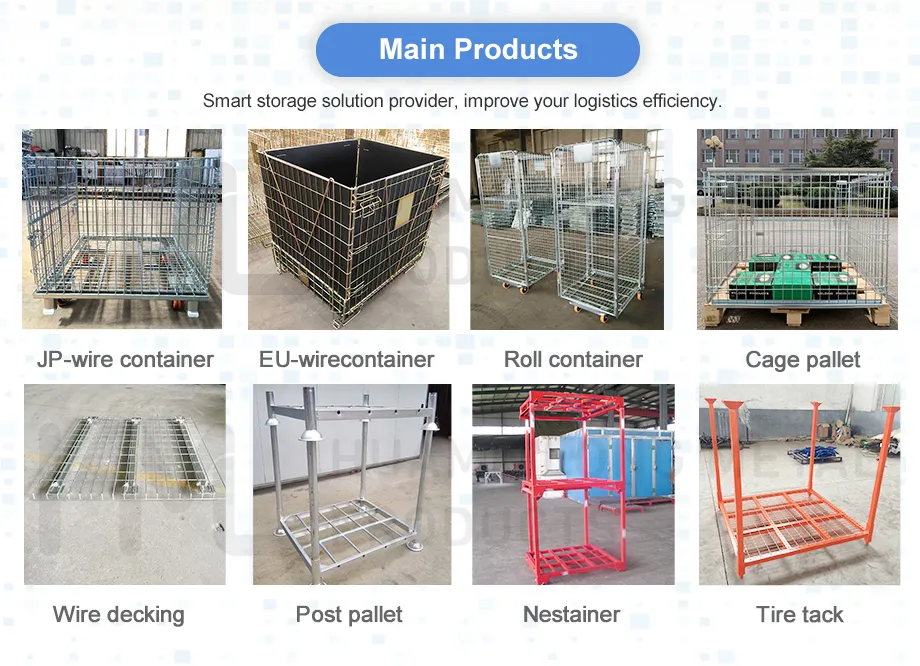

Other kinds of metal products for your choice, OEM, ODM, Customized are all welcomed!
Returnable Welding Logistics Equipment Portable Metal Wire Mesh Pallet Cage

FAQ

1, What is the material being used for your products?
Mild steel Q235, Q195

2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.

3, What is the payment terms I can get?
TT or L/C at sight, DP etc

4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)

5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.

6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.

7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.

8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.

9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment

10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size

11 What is your average production lead time?
2-3 weeks against formal order and deposit.

12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for zinc plated and powder coated products, no limitation for hot dip galvanized)
