Product Description

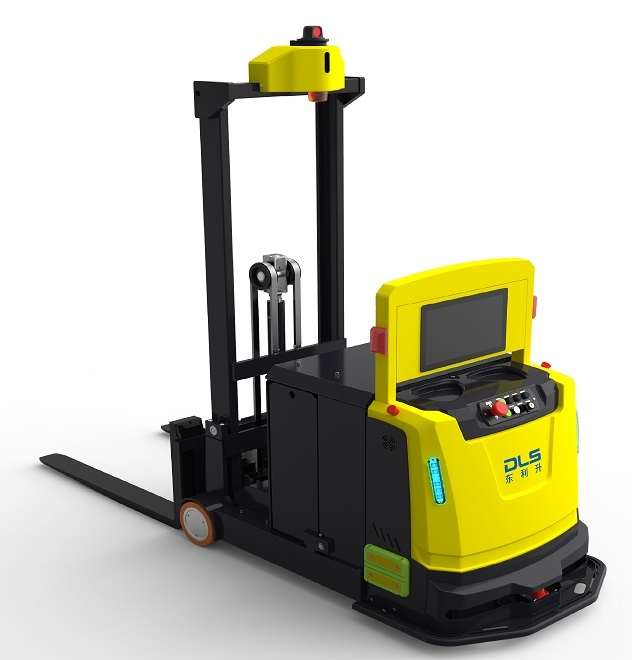

Automatic guided vehicle (AGV) is a portable robot that follows along lasers lidar for navigation. They are most often used in industrial applications to transport heavy materials around a large industrial building, such as a factory or warehouse

	Model	SA10
1				Electric	17	Distance to ground(min.)	m	mm	20
2	Navigation			Laser lidar	18	Right-angle stacking channel width	Ast	mm	1900
3	Load	Q	kg	1000	19
4	Load Center	C	mm	600	20	Turning Radius	Wa	mm	980
5	Axis Distance	Y	mm	875	21	Speed empty/full	empty/full	m/s	0.7/0.6
6	Tire			polyurethane	22	Lift	empty/full	mm/s	150/90
7	Driving Wheel	mm	Φ80	Φ80	23	Down	empty/full	mm/s	100/140
8	Steering Model			Electric Differential	24	Gradeability	empty/full	%	4/1
9	Front Wheel Distance	b11 mm	350/400/510	350/400/510	25	Brake			Electromagnetic
10	Overall Height	h1	mm	450	26	Driving moto		kw	0.6
11	Lifting Height	h3	mm	70	27	Lift moto		kw	0.8
12	Fork	h5	mm	85	28	Lithium battery		V/Ah	48/24
13	Overal length	L1	mm	1460	29	Battery Weight		kg	30
14	Overal Width	b1	mm	735	30	Tottle Weight (incl. Battery)		kg	110
15	Fork Size	s/e/l	mm	186X60X1170	31	Charging			Auto
16	Distance fork	b3	mm	520/570/680	32	Working Time		h	3
17	Loading Wheel	mm	Φ60	Φ60	33	Noise		dB(A)	<70<>

<70<>

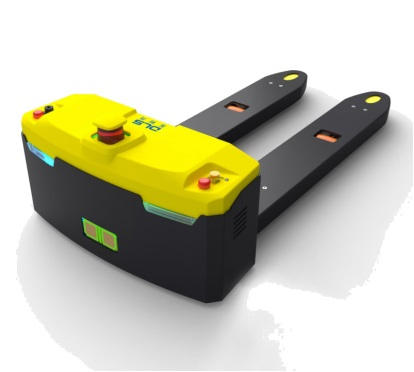

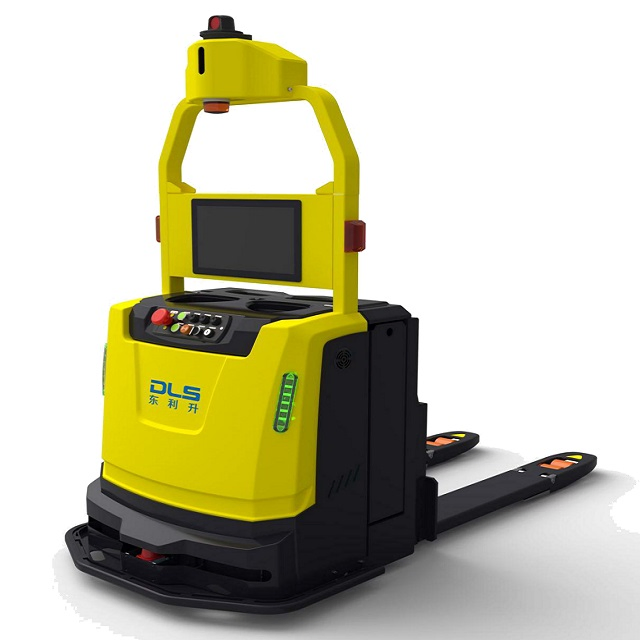

1 Ton Pallet Truck Nature Navigation Trackless Servo Motor Forklift Agv

1 Ton Pallet Truck Nature Navigation Trackless Servo Motor Forklift Agv
