Product Description

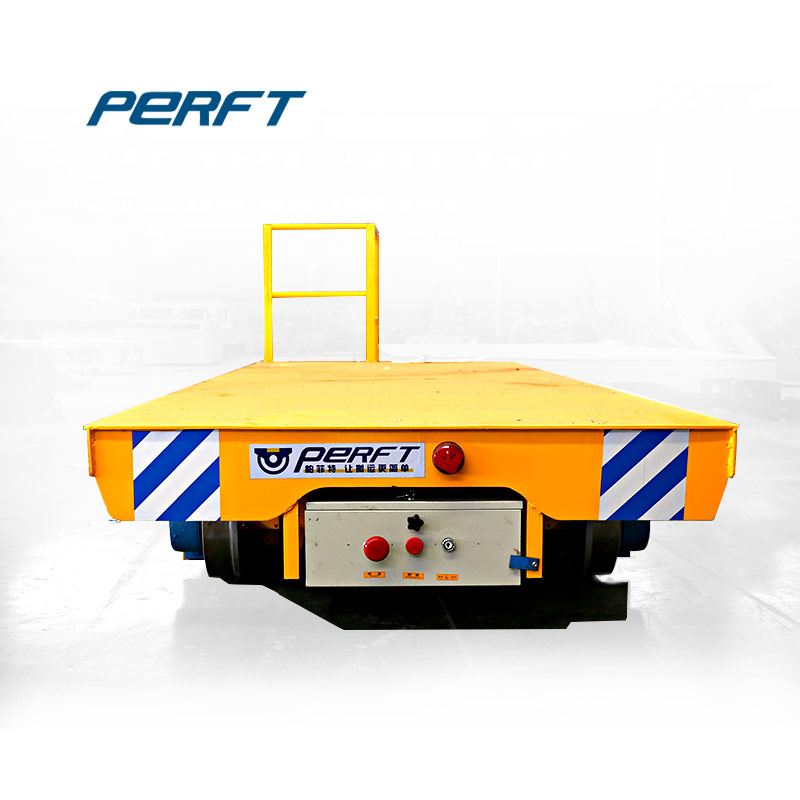

Heavy Material Transfer Trolley In-plant use Rail Guided Transfer Cart

1.Product Introduction---Rail Guided Transfer Cart
Heavy material transfer trolley in-plant use rail guided transfer cart provide dependable, efficient transfer of loads for a diverse array of applications ranging from aluminum anodizing, paper roll storage, general manufacturing and can be customized to suit. This rail guided transfer cart can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result is increased production and throughput
Heavy Material Transfer Trolley Plant Use Rail Guided Transfer Cart

Heavy Material Transfer Trolley Plant Use Rail Guided Transfer Cart

2.Product Advantages---Rail Guided Transfer Cart
1) The rail guided transfer cart doesn't need have any steering function since they equipped with steel wheels and move just on railways.
2) The rail rail transfer trolley represent the superior design for production cycles which are regular or frequent both time-wise and route-wise.
3) As they have steel wheels and run on fixed steel rails they are suited for very high loading capacities owing to the very low friction between steel and steel.
4) For all the reason, the cost of the rail guided transfer cart - referring to same dimensions and same loading capacity - is lower than the motorized battery trolleys on wheels which needed to equip with steering mechanism and greater powers.
5)Our company, with its 14 years experience in this kind of rail trolley, offers handling with state-of and the-art technologies, on account of continuous design improvement by insistingon most up-to-date electronic innovations.
Heavy Material Transfer Trolley Plant Use Rail Guided Transfer Cart

3. Application Areas---Rail Guided Transfer Cart

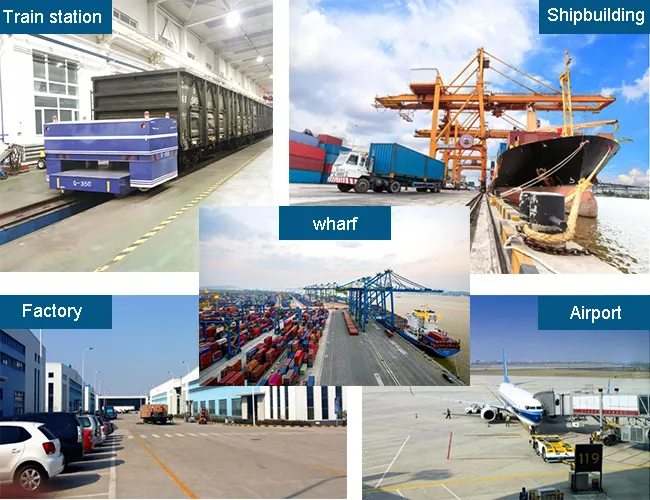

The rail guided transfer cart of PERFECT allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and son on.
Regardless of the complexity of your transportation requirements and the use of the environment, our engineers with 15 designing experience can provide you with a viable solution. Tell us your requirements, feedback to you suitable project economically and reasonably.
Heavy Material Transfer Trolley Plant Use Rail Guided Transfer Cart

4.Product Details---Rail Guided Transfer Cart

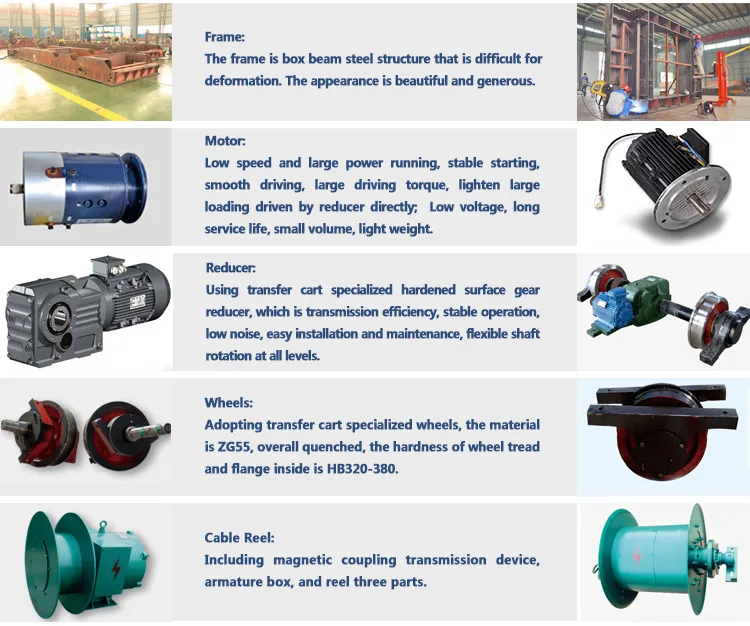

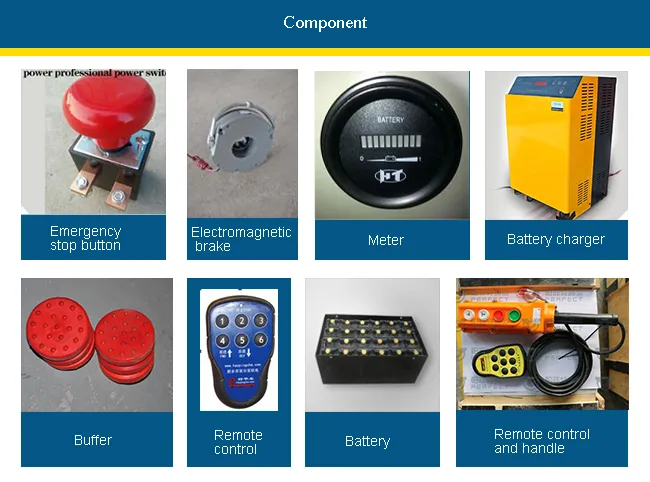

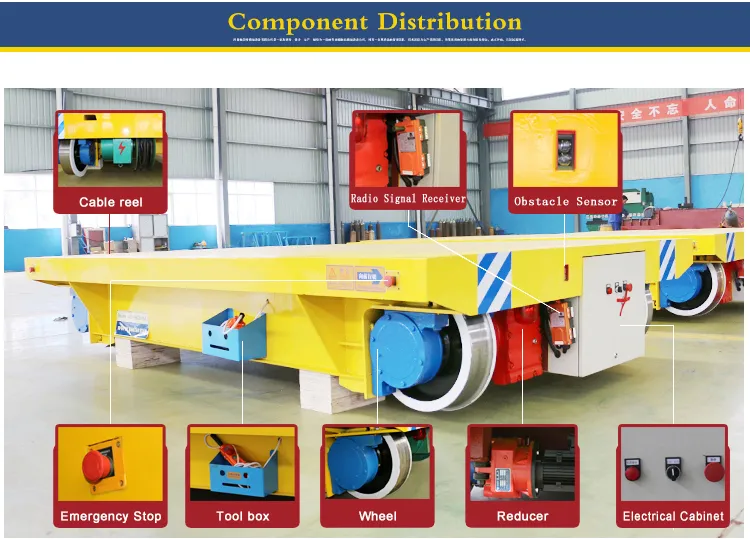

The current is supplied to pulling motor through electric control system, which makes the rail transfer trolley start, stop, move forward, move backward, turn around or change speed, etc. The rail guided transfer cart is standard equipped the cart frame, wheels, motor, reducer, battery, charger and hand pendant. And the trolley is also equipped with such safety device: buffer, alarm light, lifting hole, emergency stop button and radar detector.
Heavy Material Transfer Trolley Plant Use Rail Guided Transfer Cart

5.Characters and Parameter---Rail Guided Transfer Cart

Model		BDGS-20t	BDGS-50t	BDGS-100t	BDGS-150t
Rated Load(t)		20	50	100	150
Table Size (mm)	Length(L)	4000	5500	6500	10000
	Width(W)	2200	2500	2800	3000
	Height(H)	550	650	850	1200
Wheel Base(mm)		2800	4200	4900	7000
Rail Inner Gauge(mm)		1435	1435	2000	2000
Wheel Diameter(mm)		350	500	600	600
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	75	75
Running Speed(min)		0-20	0-20	0-20	0-18
Motor Power(kw)		2.5	5.5	11	15
Transformer Power(KVA)		6.8	10	30	30
Transformer Quantity		1	1	1	1
Running Distance(m)		70	50	50	50
Max Wheel Load(KN)		77.7	174	343.8	265.2
Reference Weight(t)		5.9	8	14.6	26.8
Recommended Rail Model		P24	P43	QU100	QU100

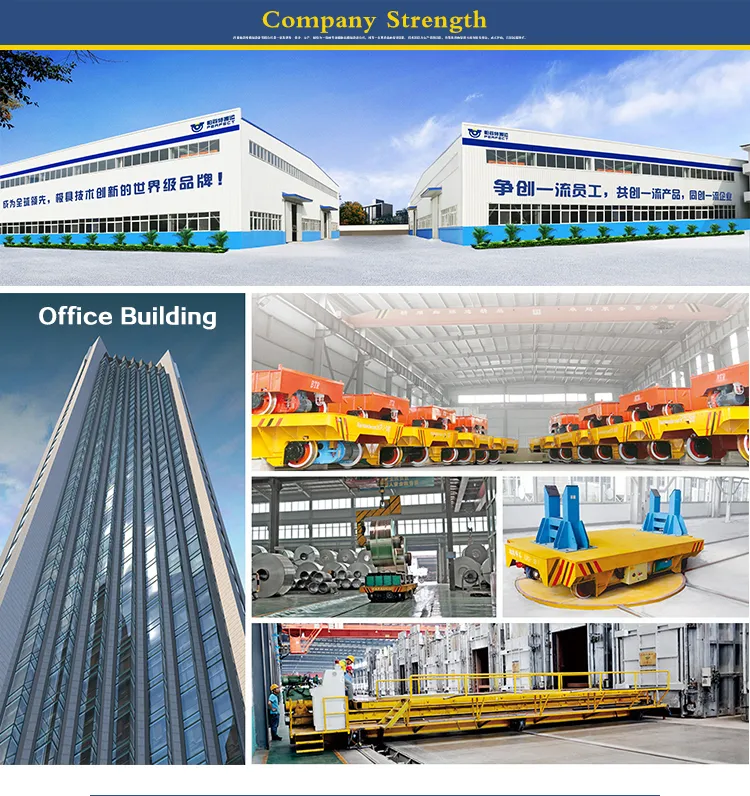

6.Our Company
Our factory is located in Xinxiang City, Henan province. Our company has 15 years of industry experience, passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.
we can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart , BJT cable drum series Transfer cart , BHX safety sliding line series Transfer cart , BXC battery series Transfer cart , BTL towed cable series Transfer cart , BP non-power series Transfer cart , BQY train towed series Transfer cart , BWP trackless series Transfer cart and special Transfer cart , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
Heavy Material Transfer Trolley Plant Use Rail Guided Transfer Cart

7.Q&A
1. Q: What is the size and load of this Rail Coil Transfer Car?
A:The size and load of our this rail coil transfer car is customized design according to your requirement.
2. Q: How do you transport the Rail Coil Transfer Car and what is the package ?
A: For the big part, we will pack the rail coil transfer car with tarpaulin and wood pallet on the bottom of the rail coil transfer car to prevent it from moving. For the small part, we will pack it in wood case.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
4. Q: What is your MOQ?
A: At present, our MOQ is 1 set.
5. Q:Can choose the power supply?
A:Yes,such as the cable drum, rail powered, busbar powered ,trailing cable powered, etc.
