Product Description

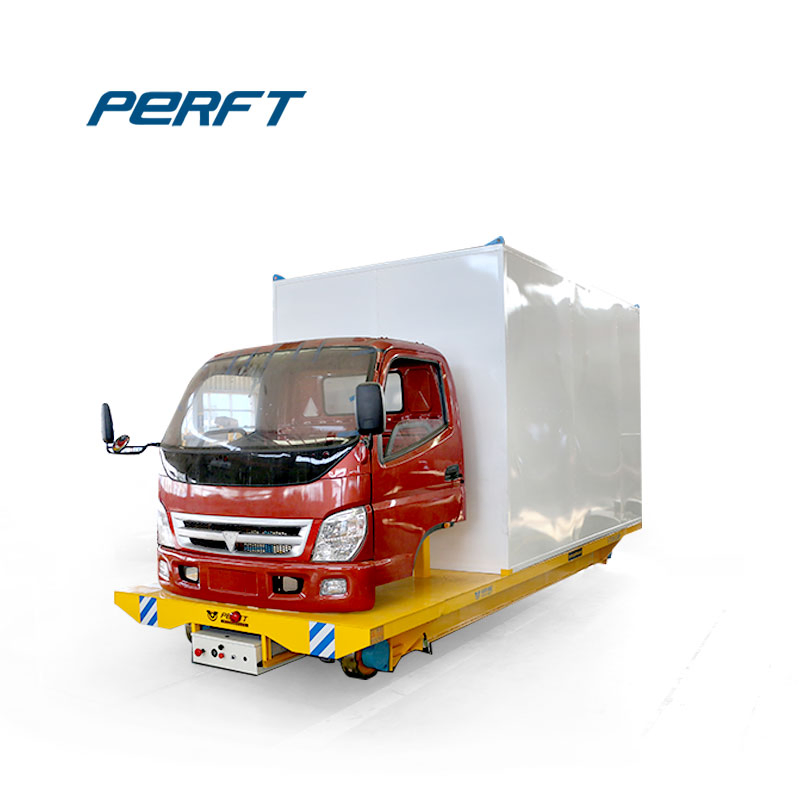

High Quality Low Voltage Powered Electric Flat Transfer Cart

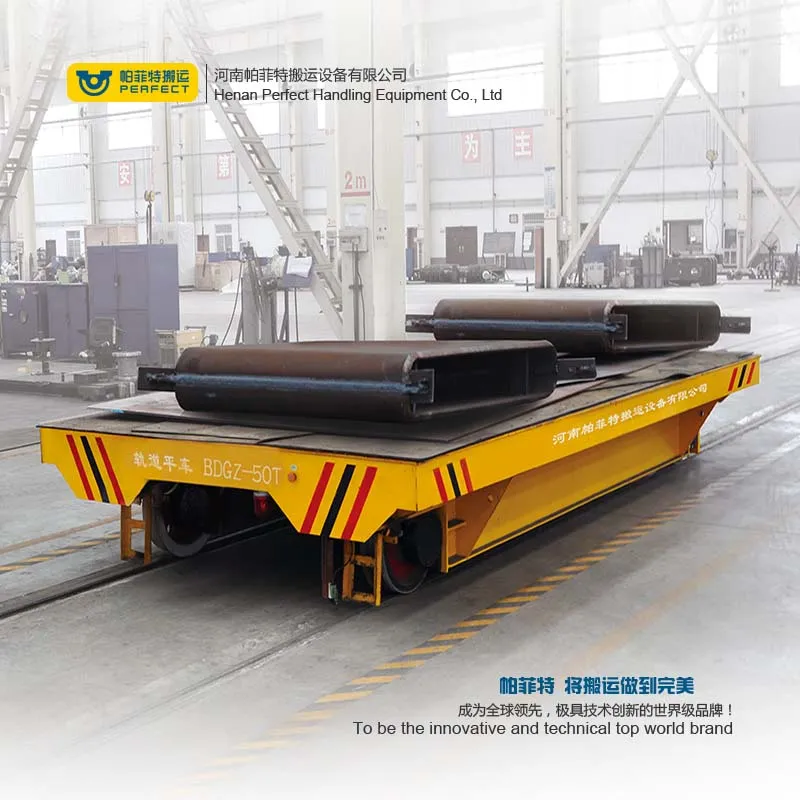

Introduction of Electric Flat Cart

We have designed transfer cars for all kind of industries. Our versatility to manufacture this vehicles is proven by our experience and adaptations. These transfer cars can be made according to our clients' needs and with clear commitment to meet them.
Carts are mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine parts from one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.

High Quality Low Voltage Powered Electric Flat Transfer Cart

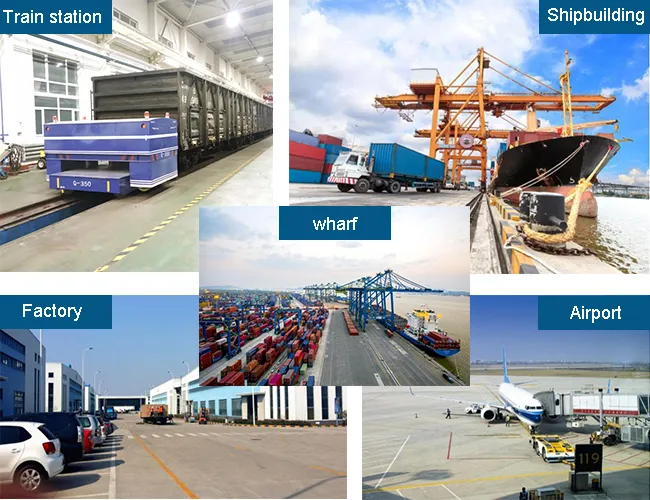

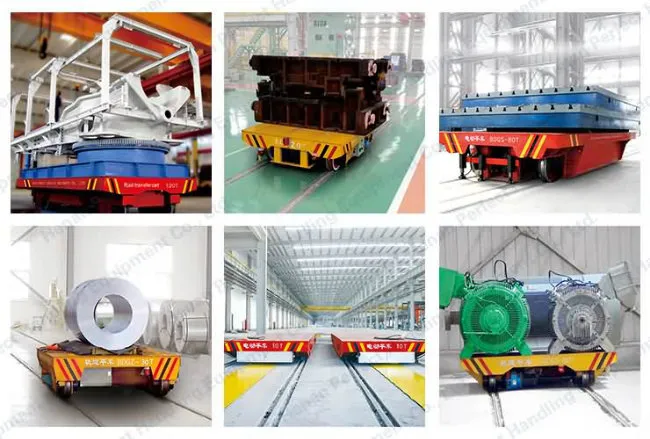

Application of Electric Flat Cart
The Electric Flat Cart of PERFECT allow movement charges at ground level in all types of industries and applications, such as assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

High Quality Low Voltage Powered Electric Flat Transfer Cart

Processing Line of Electric Flat Cart
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.

Company and Customers' Visit

Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Electric Flat Cart to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
High Quality Low Voltage Powered Electric Flat Transfer Cart

Transportation of Electric Flat Cart

*For length is less than 6m, the width is less than 2.2m. Electric Flat Cart will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Flat Cart needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.

What Surfaces Do Electric Flat Cart Travel On?
The On-rail Transfer Cart is designed with flanged wheels and travels on rail. Most applications are on level surfaces; however, it is possible for carts to travel on inclines not greater than 4°.

With steerable carts flat tread steel wheels (hardened tread surface) come standard and are fine for most concrete smooth to semi smooth floors. For non-marking epoxy floor systems, optional urethane wheels can be ordered (up to 20 ton capacity). Carts are not designed for uneven surfaces such as gravel, rough terrain, or badly cracked concrete floors.
